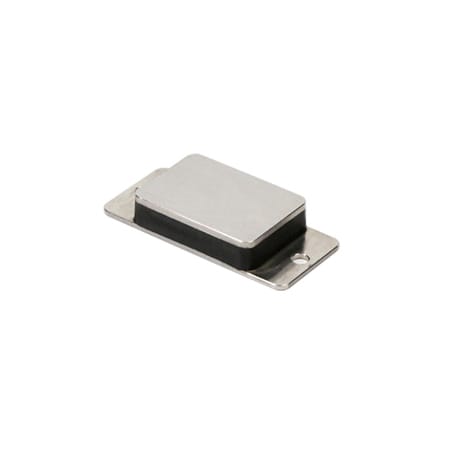

260°C High Temperature embedded rfid tags RUG-002
RUG-002 are embedded rfid tags with long read ranges of up to 9 meters on metals. Designed for heavy industry and outdoor applications in high temperature environment, RUG-002 features a high impact, water proof, durable encasement. High Temperature long read ranges RFID Tags RUG-002 are excellent choice for tracking large assets in open storage environments, without the concern of a battery.
| Functional Specifications: |
| RFID Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US 902-928MHz, EU 865-868MHz |
| IC type | Alien Higgs-3/NXP UCODE8 |
| Memory | EPC 96bits (Up to 480bits) , User 512bits, TID64bits |
| Write Cycles | 100,000 times |
| Functionality | Read/write |
| Data Retention | 50 Years |
| Applicable Surface | Metal Surfaces |
| Read Range(On Metal) :(Fix Reader) | 9.0m (US) 902-928MHz, On metal; 8.8m (EU) 865-868MHz, On metal; |
| Read Range(On Metal) :(Handheld Reader) | 5.5m (US) 902-928MHz, On metal; 5.3m (EU) 865-868MHz, On metal; |
| Warranty | 1 Year |
| Physical Specification: |
| Size | 56x25x9.5mm |
| Thickness | 9.5mm |
| Material | 304 stainless steel |
| Colour | Grey |
| Mounting Methods | Screw, Weld |
| Weight | 41g |
| Enivironmenal Specification: |
| IP Rating | IP68 |
| Storage Temperature | -50℃ to +260℃ (Withstand 300°С for 100 hours) |
| Operation Temperature | -40°C to +150°C |
| Certifications | Reach, RoHs, CE |
