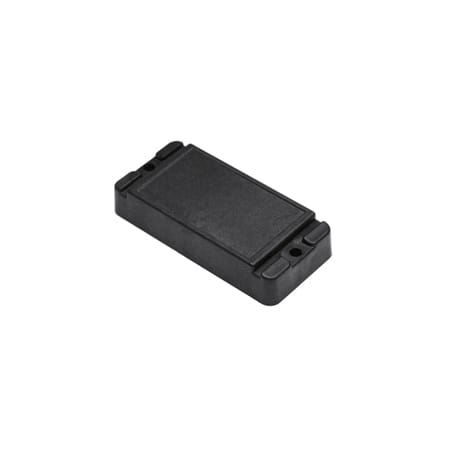

260°C High Temperature Resistant RFID Tag RUG-004
Application RUG-004 RFID tag in car,you can find that it can withstand exposure to high temperatures(Withstand 300°С for 100 hours), chemicals, pressure and torsion, with uncompromised performance. These UHF RFID Tags are resistant to severe physical, mechanical, and thermal environments.Currently,you can found RUG-004 High Temperature Resistant with long reading range RFID Tag application in car,industrial tools, medical trays, heavy equipment, car and aerospace components, cargo containers, and even blade and rack servers.
| Functional Specifications: |
| RFID Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US 902-928MHz, EU 865-868MHz |
| IC type | Alien Higgs-3/NXP UCODE8 |
| Memory | EPC 128bits, User 128bits, TID64bits |
| Write Cycles | 100,000 times |
| Functionality | Read/write |
| Data Retention | 50 Years |
| Applicable Surface | Metal Surfaces |
| Read Range(On Metal) :(Fix Reader) | 13m (US) 902-928MHz, On metal; 12m (EU) 865-868MHz, On metal; |
| Read Range(On Metal) :(Handheld Reader) | 7.5m (US) 902-928MHz, On metal; 7.0m (EU) 865-868MHz, On metal; |
| Warranty | 1 Year |
| Physical Specification: |
| Size | 62x29x12mm, Hole: dia3.5mmx2 |
| Thickness | 12mm |
| Material | PEEK |
| Colour | Black |
| Mounting Methods | Screw(M3) |
| Weight | 15g |
| Enivironmenal Specification: |
| IP Rating | IP65 |
| Storage Temperature | -60°C to +260°C (Withstand 300°С for 100 hours) |
| Operation Temperature | -40°C to +150°C |
| Certifications | Reach, RoHs, CE |
