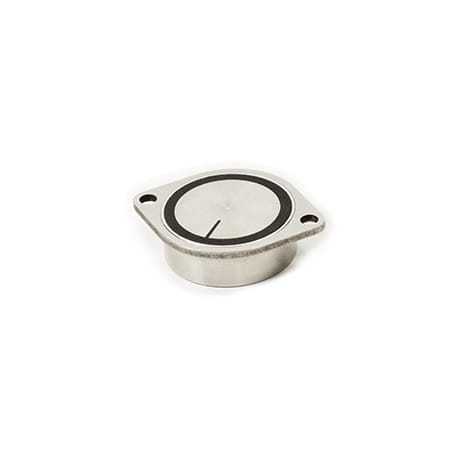

260°C High Temperature Rugged Metal RFID Tag RUG-003
RUG-003 is a rfid electronic tag and provides extreme durability and resistance to very high temperature over 300°C for 100 hours, corrosive chemicals and challenging mechanical stresses. These 304 stainless steel metal extremely rugged RFID tag measure dia30mm and are designed to be fixed with bolts or screws, or welded directly onto metal assets for permanent attachment.
| Functional Specifications: |
| RFID Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US 902-928MHz, EU 865-868MHz |
| IC type | Alien Higgs-3/NXP UCODE8 |
| Memory | EPC 96bits (Up to 480bits), User 512bits, TID64bits |
| Write Cycles | 100,000 times |
| Functionality | Read/write |
| Data Retention | 50 Years |
| Applicable Surface | Metal Surfaces |
| Read Range(On Metal) :(Fix Reader) | 3.5m (US) 902-928MHz, On metal; 3.5m (EU) 865-868MHz, On metal; |
| Read Range(On Metal) :(Handheld Reader) | 2.6m (US) 902-928MHz, On metal; 2.6m (EU) 865-868MHz, On metal; |
| Warranty | 1 Year |
| Physical Specification: |
| Size | Dia30mm |
| Thickness | 11mm |
| Material | 304 stainless steel |
| Colour | Grey |
| Mounting Methods | Screw, Weld, Embedded |
| Weight | 34g |
| Enivironmenal Specification: |
| IP Rating | IP68 |
| Storage Temperature | -50℃ to +260℃(Withstand 300°С for 100 hours) |
| Operation Temperature | -40°C to +150°C |
| Certifications | Reach, RoHs, CE |
