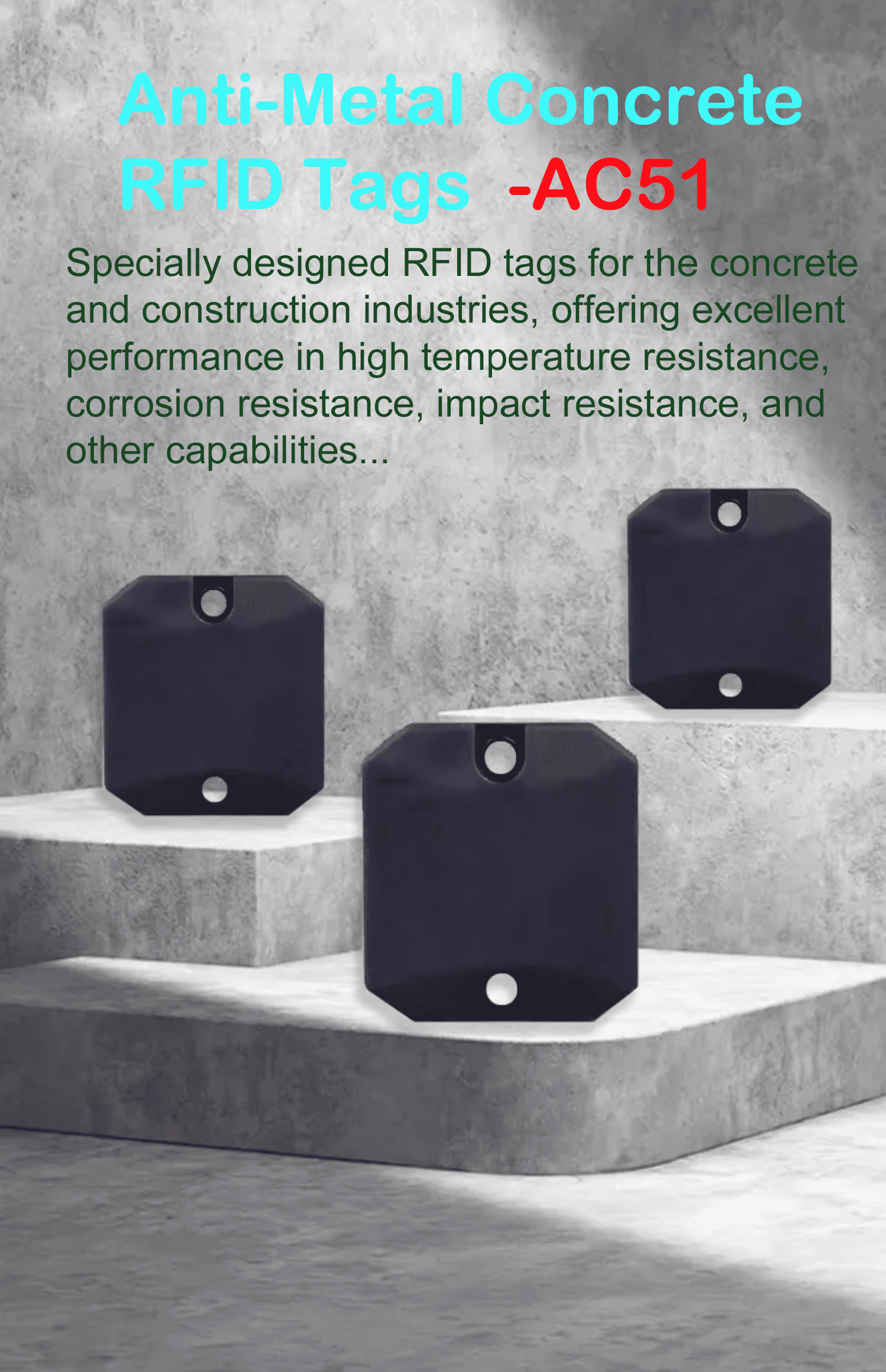

Cement Concrete Rugged RFID Tag-AC51
Cement concrete Rugged RFID tags are made from high-tech composite materials, it has extremely high strength and features shockproof, waterproof, and acid-alkali corrosion-resistant properties. Additionally, with a special antenna design, it can be used on metal surfaces. The tag can be read normally when placed close to the steel reinforcement in concrete, and the signal can pass through the metal for reading.
| Functional Specifications: |
| RFID Protocol | EPCglobal and ISO 18000-63 compliant, Gen2v2 compliant |
| Frequency | 840MHz to 940MHz |
| IC type | Impinj Monza R6-P |
| Memory | EPC128bits , USER64bits, TID96bits |
| Write Cycles | 100,000 times |
| Functionality | Read/write |
| Data Retention | 50 years |
| Applicable Surface | on metal |
| Read Range: (Fix Reader) | 10.0m, US(902-928MHZ), On Metal; 7.5m, EU(865-868MHZ), On Metal; |
| Read Range: (Handheld Reader) | 5.0m, US(902-928MHZ), On Metal; 4.5m, EU(865-868MHZ), On Metal. |
| Embedded in concrete 5cm deep: (Fix Reader) | 4.0m, US(902-928MHZ) 4.5m, EU(865-868MHZ) |
| Embedded in concrete 5cm deep: (Handheld Reader) | 1.5m, US(902-928MHZ) 2.1m, EU(865-868MHZ) |
| Embedded in concrete 10cm deep: (Fix Reader) | 2.0m, US(902-928MHZ) 3.0m, EU(865-868MHZ) |
| Embedded in concrete 10cm deep: (Handheld Reader) | 0.8m, US(902-928MHZ) 1.2m, EU(865-868MHZ) |
| Warranty | 1 year |
| Physical Specification: |

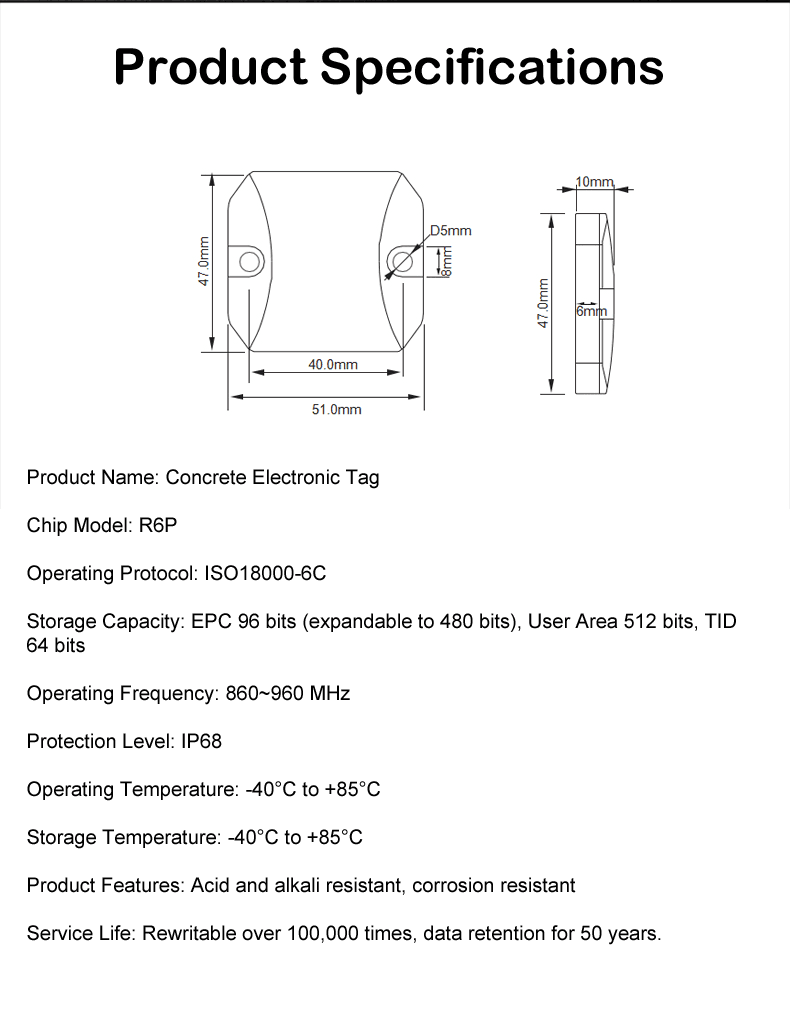

| Size | 51.0×47.0mm |
| Thickness | 10.0mm, ( Hole:D5mm ) |
| Material | Engineering plastics |
| Colour | Black |
| Mounting Methods | Screw, Rivet, Adhesive |
| Weight | 23.5g |
| Enivironmenal Specification: |
| IP Rating | IP68 |
| Storage Temperature | -40℃ to +85℃ |
| Operation Temperature | -40℃ to +85℃ |
| Certifications | Reach Approved,RoHS Approved,CE Approved |
