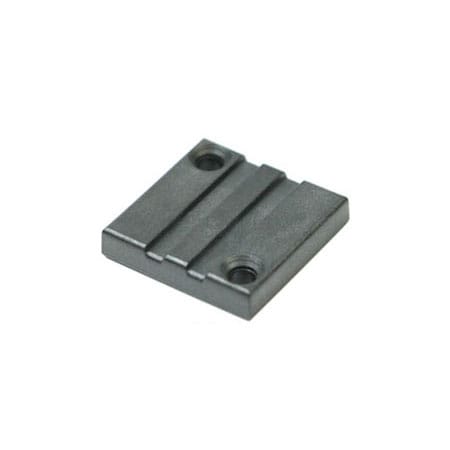

Chemical resistant and anti metal RFID Tag RUG-13
RUG-13 industrial rfid tag is developed for chemical resistant solutions. this anit metal rfid tag is designed to meet challenges associated with industrial, automotive and medical laboratory applications – where resistance to moisture and solvents are a must. Our anti metal rfid tag RUG-13 can resist and work well in industrial environment of acid and base, Fuel B, mineral oil, petroleum, salt mist, vegetable oil and metal surface.
| Functional Specifications: |
| RFID Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US 902-928MHz, EU 865-868MHz |
| IC type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000times |
| Functionality | Read/write |
| Data Retention | Up to 50 Years |
| Applicable Surface | Metal Surfaces |
| Read Range(On Metal) : (Fix Reader) | 260cm – (US) 902-928MHz, on metal 130cm – (EU) 865-868MHz, on metal |
| Read Range(On Metal) : (Handheld Reader) | 190cm – (US) 902-928MHz, on metal 100cm – (EU) 865-868MHz, on metal |
| Warranty | 1 Year |
| Physical Specification: |
| Size | 26mmx26mm (Hole:D4mmX2) |
| Thickness | 5.5mm |
| Material | PPS shell, PCB Antenna |
| Colour | Black |
| Mounting Methods | Adhesive, Screw,Binding |
| Weight | 6.5g |
| Enivironmenal Specification: |
| IP Rating | IP68 |
| Withstands Exposure To | Fuel B, mineral oil, petroleum, salt mist, vegetable oil |
| Storage Temperature | -40°C to +100°C (230°С for 30 minutes, 180°С for 120minutes) |
| Operation Temperature | -40°C to +100°C |
| Certifications | Reach Approved,RoHS Approved,CE Approved |
