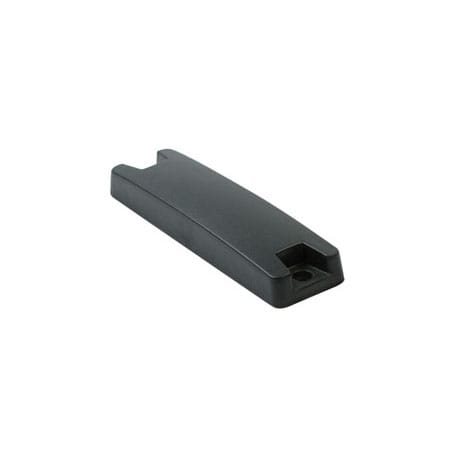

Industrial long reading distance RFID tag RUG-007
- The RUG-007 Industrial RFID tag is a worldwide(840 – 940MHz) UHF broadband capability,long reading distance and excellent performance even in outdoor environments, designed for use on metal surfaces. Its dimensions are 87 x 24 mm,reading range up to 9.8 meters. It can be screwed by using the two 5mm diameter holes at its ends, or directly glued.With IP67 protection rating, it is resistant to dust and water.
| Functional Specifications: |
| RFID Protocol | EPCglobal and ISO 18000-63 compliant, Gen2v2 compliant |
| Frequency | Global Frequency, 840MHz to 940MHz |
| IC type | Impinj Monza R6-P |
| Memory | EPC128bits , USER64bits, TID96bits |
| Write Cycles | 100,000times |
| Functionality | Read/write |
| Data Retention | Up to 50 Years |
| Applicable Surface | Metal Surfaces |
| Read Range(On Metal) : (Fix Reader) | Up to 9.8m , on metal Up to 4.8m , off metal |
| Read Range(On Metal) : (Handheld Reader) | Up to 6.0m , on metal Up to 2.8m , off metal |
| Warranty | 1 Year |
| Physical Specification: |
| Size | 87x24mm, (Hole: D5mm) |
| Thickness | 11mm |
| Material | PC |
| Colour | Black (Red, Blue, Green, White) |
| Mounting Methods | Adhesive, Screw |
| Weight | 19.0g |
| Enivironmenal Specification: |
| IP Rating | IP67 |
| Storage Temperature | -30°C to +70°C |
| Operation Temperature | -30°C to +70°C |
| Certifications | Reach Approved,RoHS Approved,CE Approved |
