Long reading range up to 12 meters UHF anti-metal tag RUG-006

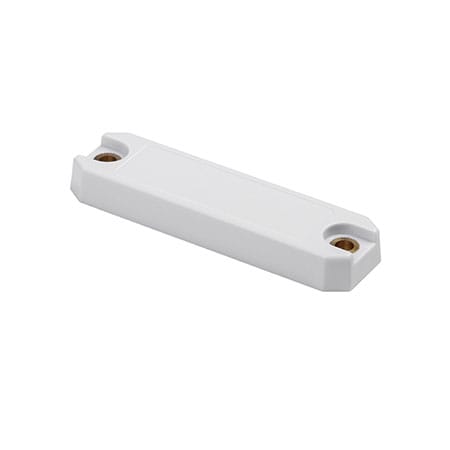

Long reading range up to 12 meters UHF anti-metal tag RUG-006 are specially designed for effective tracking and identification of assets located on or near metal surfaces. The RUG-006 uhf ant metal tags features two metal holes, allowing for secure installation using screws or rivets. Utilizing Ultra-High Frequency (UHF) technology, these anti-metal RFID tags offer an extended read range of up to 12 meters and reliable performance in challenging environments. Equipped with a shielding layer to mitigate metal interference, they are ideal for applications in inventory management, logistics, and various industrial settings.
| Functional Specifications: |
| RFID Protocol | EPC global and ISO 18000-63 compliant, Gen2v2 compliant |
| Frequency | US 902-928MHz, EU 865-868MHz |
| IC type | Impinj Monza R6-P |
| Memory | EPC 128bits , USER 64bits, TID 96bits |
| Write Cycles | 100,000times |
| Functionality | Read/write |
| Data Retention | Up to 50 Years |
| Applicable Surface | Metal Surfaces |
| Read Range(On Metal) : (Fix Reader) | Up to 12.0m – (US) 902-928MHz, on metal Up to 10.0m – (US) 865-868MHz, on metal |
| Read Range(On Metal) : (Handheld Reader) | Up to 6.0m – (US) 902-928MHz, on metal Up to 5.0m – (US) 865-868MHz, on metal |
| Warranty | 1 Year |
| Physical Specification: |
| Size | 89x25mm, (Hole:D5.0mmx2) |
| Thickness | 10.5mm |
| Material | PC |
| Colour | White |
| Mounting Methods | Adhesive, Screw, Rivet |
| Weight | 22g |
| Enivironmenal Specification: |
| IP Rating | IP68 |
| Storage Temperature | -30°C to +70°C |
| Operation Temperature | -30°C to +70°C |
| Certifications | Reach Approved,RoHS Approved,CE Approved |
