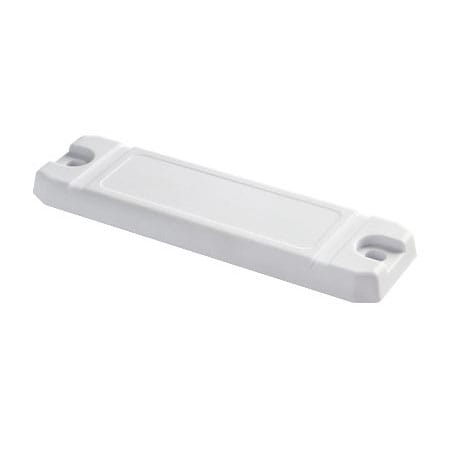

Long reading range up to 20 meters rfid asset tags RUG-010
RUG-010 rfid asset tags has an operating frequency of either 902-928 MHz (US) or 865-868 MHz (EU) and is based on the Alien Higgs-3 IC, which provides industry-leading performance and up to a 20 meters read range. The long range RUG-010 is IP68-rated, making it suitable for harsh outdoor environments as well as exposure to water and contaminants. RUG-010 UHF RFID tags have an operating temperature range of -45°C to +85°C), and can be attached using high-performance adhesives, via a rivet hole, or using a cable tie.
| Functional Specifications: |
| RFID Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US 902-928MHz, EU 865-868MHz |
| IC type | NXP UCODE 8 |
| Memory | EPC 128bits , USER 0bits, TID 96bits |
| Write Cycles | 100,000times |
| Functionality | Read/write |
| Data Retention | Up to 50 Years |
| Applicable Surface | Metal Surfaces |
| Read Range(On Metal) : (Fix Reader) | Up to 19.0m – (US) 902-928MHz, on metal Up to 20.0m – (EU) 865-868MHz, on metal |
| Read Range(On Metal) : (Handheld Reader) | Up to 7.0m – (US) 902-928MHz, on metal Up to 7.5m – (EU) 865-868MHz, on metal |
| Warranty | 1 Year |
| Physical Specification: |
| Size | 105x30mm, (Hole:D5.2mmx2) |
| Thickness | 7.5mm |
| Material | ABS+PC |
| Colour | White |
| Mounting Methods | Adhesive, Screw, binding |
| Weight | 26.0g |
| Enivironmenal Specification: |
| IP Rating | IP68 |
| Storage Temperature | -40°C to +85°C |
| Operation Temperature | -25°C to +85°C |
| Certifications | Reach Approved,RoHS Approved,CE Approved |
