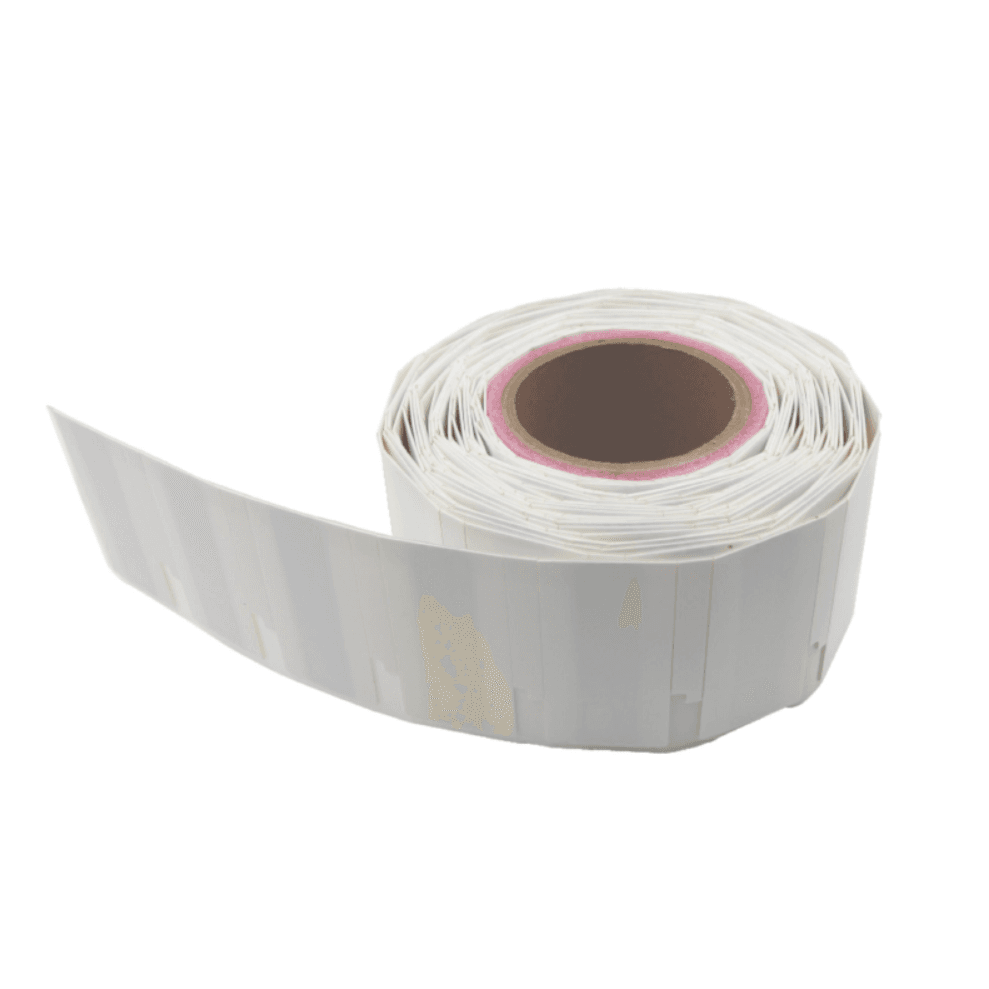

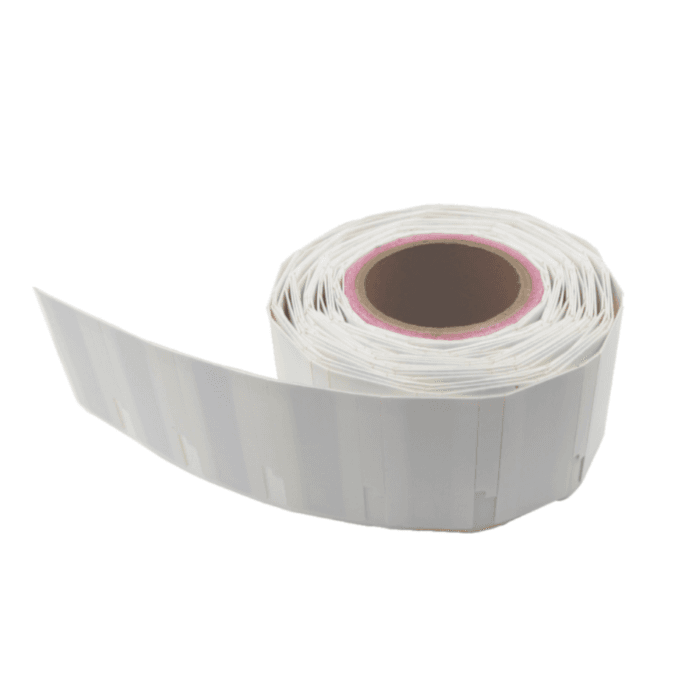

UHF Flexible Anti-Metal label/tag MS7030

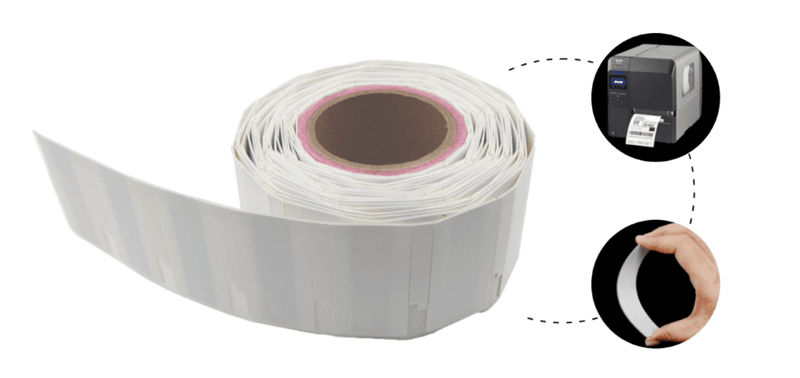

The flexible RFID tag operates in UHF frequency band for long distance identification,It is flexible and can be stick on metallic assets easily, specially for irregular and uneven surface,such as IT Asset, steel boiler, metal container,steel pipe,etc . UHF Flexible Tag has good performance on metal (reading range up to 6.5 meters) and can be printed, barcode, encoding, logo, numbers,text by RFID printers.
 UHF Flexible Anti-Metal labelPhysical Specification: |
| Size | 70x 30mm |
| Thickness | 1.2mm |
| Face Stock | Printable white PET, resin ribbon is recommended |
| Colour | White |
| Mounting Methods | Adhesive |
| Weight | 2.2g |
| Functional Specifications: |
| Air Interface Protocol – Standard | EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency | (EU)865~868MHz / (US)902～928MHz |
| IC Type | Impinj MR 6-P/NXP UCODE 9 |
| Support Printer | SATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc. |
| Write Cycles | 100,000 Times |
| Functionality | Read/write |
| Data Retention | 50 Year |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 6.0m, on metal |
| Read Range(handheld reader) | Up to 3.0m, on metal |
| Application | Metallic container tracking, Equipment&device tracking, Warehouse shelf , Automotive components tracking, IT asset tracking, etc |
| Environmental parameters: |
| IP Rating: | IP68 |
| Temperature | -20～+85℃ |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
