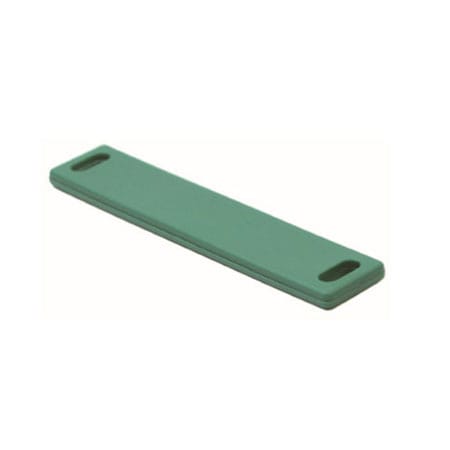

UHF TPU Flexible RFID Tag RUG-012
RUG-012 is a flexible RFID tags for inventory, This UHF flexible tag has unique TPU housings that enable it to tolerate repeated bending or torsion and maintain excellent performance.
RUG-012 Flexible RFID tags are waterproof and can be used in deep sea operations and deliver reliable performance and reading stability at non-metallic surface.
Rectangular RUG-012 flexible rfid tags can attach snugly to round or irregular surfaces, such as cylindrical containers, plastic pipes, helmets or even trees.
| Functional Specifications: |
| RFID Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | Global 840MHZ to 960MHZ |
| IC type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000times |
| Functionality | Read/write |
| Data Retention | Up to 50 Years |
| Applicable Surface | Non Metal Surfaces |
| Read Range: (Fix Reader) | Up to 7.5m, off metal |
| Read Range: (Handheld Reader) | Up to 5.0m, off metal |
| Warranty | 1 Year |
| Physical Specification: |
| Size | 90x18mm, (Hole: 10*4mm) |
| Thickness | 4.0mm |
| Material | TPU |
| Colour | Black (Red, Blue, Green,Yellow, White) |
| Mounting Methods | Cable Tie |
| Weight | 8.0g |
| Enivironmenal Specification: |
| IP Rating | IP68 |
| Storage Temperature | -40°C to +100°C |
| Operation Temperature | -40°C to +100°C |
| Certifications | Reach Approved,RoHS Approved,CE Approved |
