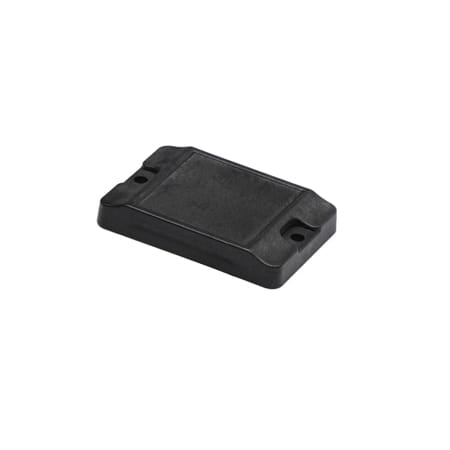

concrete construction RFID TAG -AC46
AC46 is an rfid in concrete construction tag designed to be mounted on metal and also embedded in concrete. AC46 rfid in construction Embedded RFID tag can be used to uniquely identify building materials improving the management of construction processes. it provides read range up to 6.5 meters when used on the Metal surface and read range up to 2.2 meters when embedded in concrete at a depth of 5 cm.
| Functional Specifications: |
| RFID Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US 902-928MHz, EU 865-868MHz |
| IC type | Alien Higgs-3, (Available in Monza M4QT, Monza R6, UCODE 7XM+,etc) |
| Memory | EPC 96bits (Up to 480bits) , User 512bits, TID64bits |
| Write Cycles | 100,000 times |
| Functionality | Read/write |
| Data Retention | 50 years |
| Applicable Surface | on metal |
| Read Range: (Fix Reader) | 6.5 meters (US) 902-928MHz, on metal; 6.6 meters (EU) 865-868MHz, on metal; |
| Read Range: (Handheld Reader) | 4.4 meters (US) 902-928MHz, on metal; 4.6 meters (EU) 865-868MHz, on metal; |
| Embedded in concrete 5cm deep:(Handheld Reader) | 2.2 meters (US) 902-928MHz, Embedded in concrete 5cm deep; 2.1 meters (EU) 865-868MHz, Embedded in concrete 5cm deep; |
| Embedded in concrete 10cm deep:(Handheld Reader) | 2.0 meters (US) 902-928MHz, Embedded in concrete 5cm deep; 1.9 meters (EU) 865-868MHz, Embedded in concrete 5cm deep; |
| Warranty | 1 year |
| Physical Specification: |
| Size | 46.5×31.5×7.5mm, Hole: dia3.6mmx2 |
| Thickness | 7.5mm |
| Material | PPS |
| Colour | Black |
| Mounting Methods | Embedded concrete |
| Weight | 24g |
| Enivironmenal Specification: |
| IP Rating | IP68 |
| Storage Temperature | -40℃ to +150℃ |
| Operation Temperature | -25℃ to +100℃ |
| Certifications | Reach Approved,RoHS Approved,CE Approved |
