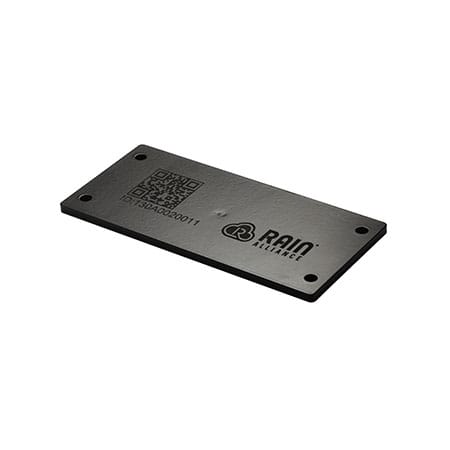

Long reading range up to 21 meters Nameplate rfid tag RUG-009
RUG-009 is a long-range RFID solutions tag designed for attachment to metal surfaces, including metal containers, machines, tools, vehicles, and other metallic objects. It is configured to be read by a UHF RFID reader, offering a 21 meters rfid maximum range and fast data transfer speeds. RUG-009 serves as a versatile nameplate rfid tag and finds widespread applications in Asset Tracking, Supply Chain Management, Inventory Control, Vehicle Management, Parking Management, and more.
| Functional Specifications: |
| RFID Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US 902-928MHz, EU 865-868MHz |
| IC type | NXP UCODE 8 |
| Memory | EPC 128bits , USER 0bits, TID 96bits |
| Write Cycles | 100,000times |
| Functionality | Read/write |
| Data Retention | Up to 50 Years |
| Applicable Surface | Metal Surfaces |
| Read Range(On Metal) : (Fix Reader) | Up to 21.0m – (US) 902-928MHz, on metal Up to 15.0m – (US) 865-868MHz, on metal |
| Read Range(On Metal) : (Handheld Reader) | Up to 9.0m – (US) 902-928MHz, on metal Up to 7.0m – (US) 865-868MHz, on metal |
| Warranty | 1 Year |
| Physical Specification: |
| Size | 130x60mm, (Hole:D5.0mmx4) |
| Thickness | 3.9mm |
| Material | PCB |
| Colour | Black |
| Mounting Methods | Adhesive, Screw |
| Weight | 61g |
| Enivironmenal Specification: |
| IP Rating | IP68 |
| Storage Temperature | -40°C to +100°C |
| Operation Temperature | -40°C to +100°C |
| Certifications | Reach Approved,RoHS Approved,CE Approved |
